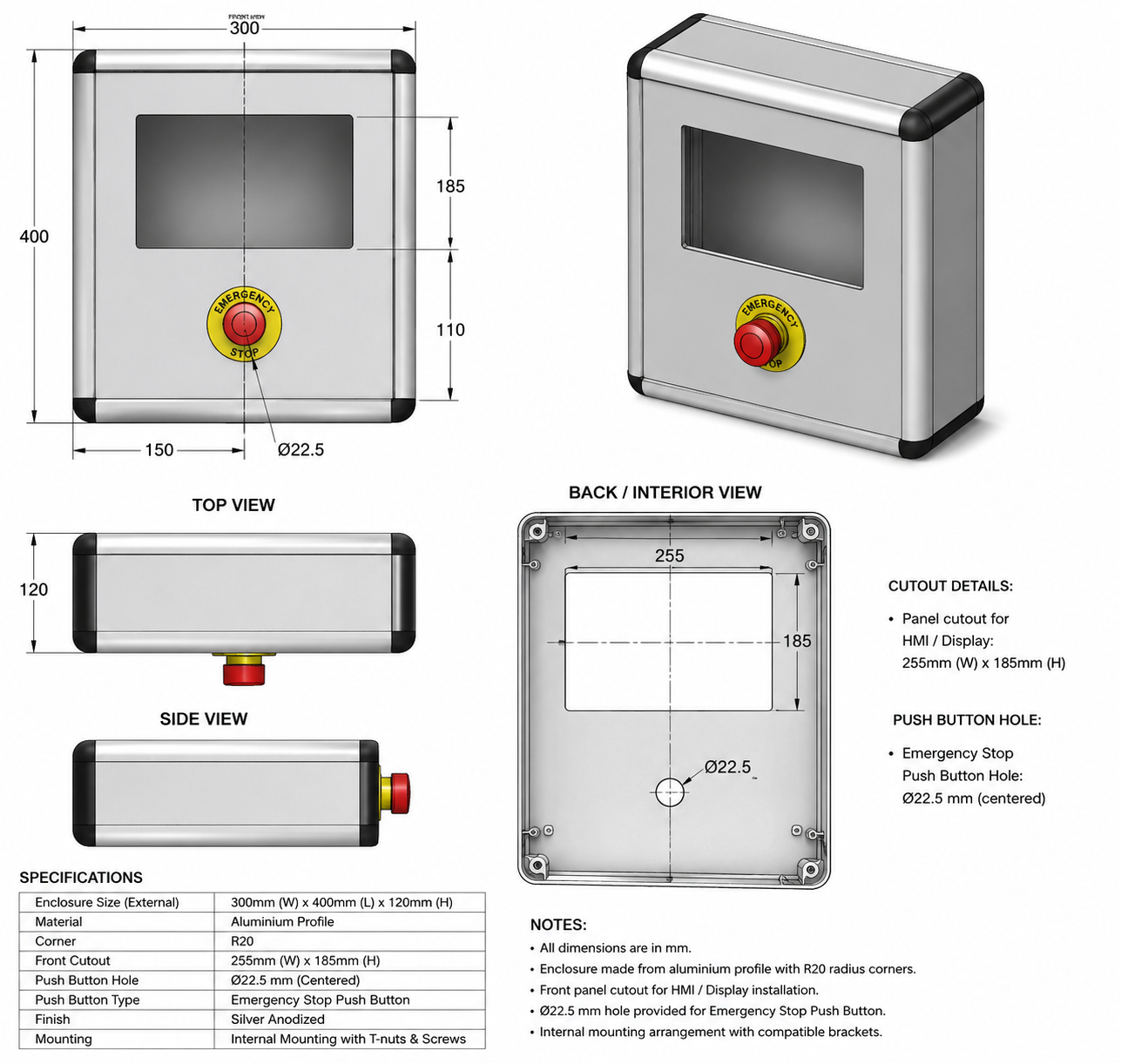

R20 Aluminium Profile Enclosure
Technical Specifications
Enclosure Type: Industrial Aluminium Profile Enclosure
Profile Radius: R20
Overall Dimensions: 300 mm (W) × 400 mm (H) × 120 mm (D)
Front Panel Cut-out: 255 mm × 185 mm
Emergency Stop Hole: Ø22.5 mm
Hole Location: Centre of the front panel
Application: HMI / Push Button Control Enclosure
Frame Material: R20 Aluminium Extrusion Profile
Finish: Natural Anodized Aluminium (or as required)
Assembly: Corner connectors with fastening hardware
Mounting: Suitable for wall mounting or machine mounting
Front Panel Details
HMI Cut-out: 255 × 185 mm
Emergency Stop Push Button Hole: Ø22.5 mm (Centre Position) for plastic extruder machine
