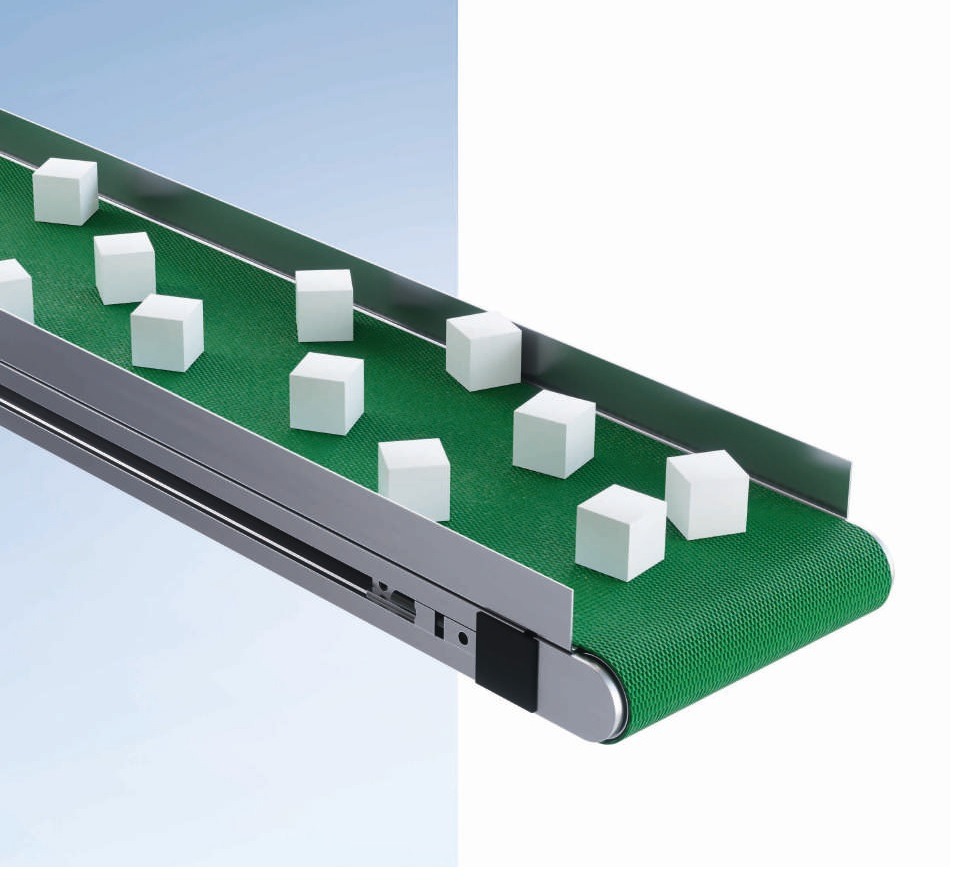

Economical transport of small,
lightweight products
Low height for easy integration in
restricted installation conditions
Secure transfer of small products,
with optional knife edge
Wide variety of drive options and
belt designs to suit any application
Large selection of asynchronous AC
motors,
DC motors and stepper motors
Flexible operation in reverse,
accumulation and cyclic modes
Completely new conveyor frame design
with 10 mm standard slot
Option of ø 12 mm knife edge
Addition of AF direct head drive and
BF lower belt drive
New width variants from 50 to 300 mm
Additional 24 V DC motor and 48 V
stepper motor
The position of the drive between the tensioning elements can be freely selected by specifying L2.
This makes the conveyor extremely flexible when integrating into existing systems
Technical data
Conveyor length L individual from 500-3.000 mm
Conveyor width B 50, 75, 100, 150, 200, 250 and 300 mm
Belt width B-10 mm p. 11
Drive location left/right
Motor options Three-phase asynchronous motors 230/400 V,
direct current motors 24 V and stepper motors 48 V
Drive and speed Intermediate chain drive; up to 30 m/min
Stands Single stands S51.2 and S53.32, plus moveable
stands S53.11 and S53.11
from p. 12
Side rails SF1.3 and SF01 from p. 16
Standard total load up to 15 kg
